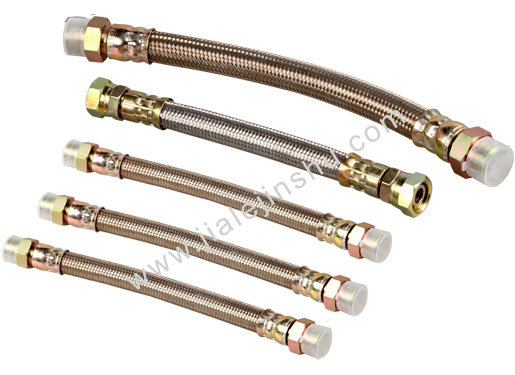

打气泵软管，制动软管 Air pump hose,Brake hose
材质：氟胶管+不锈钢编制网
Material：Fluorine hose + stainless steel mesh
产品特点：
气动制动软管主要用于各类卡车、客车、重型车的气动制动系统中，传递气压动力。
内层采用特种氟橡胶，外层采用304不锈钢丝多（单）层编织而成，具有耐高温、耐腐蚀、耐老化、阻燃、抗震、弯曲半径小、使用寿命长等特点。也可广泛应用于航空、化工、机械等领域。工作温度-45℃~+260℃，短期可达300℃，高温200℃爆破压力>3MPA，常温爆破压力
>10MPA，经200℃，720小时高温空气老化后保持3MPA不
泄漏，脉冲寿命超过20万次。
产品用途：
气动制动软管主要用于各类卡车、客车、重型车的气动制
动系统中，传递气压动力
Features:
Pneumatic brake hose is mainly used in the pneumatic brake system of various trucks, buses and heavy vehicles to transmit pneumatic power. The inner layer is made of special fluorine rubber, and the outer layer is made of 304 stainless steel wire multi-layer (single) layer. It has the characteristics of high temperature resistance, corrosion resistance, aging resistance, flame retardancy, earthquake resistance, small bending radius and long service life. Can also be widely used in aviation, chemical, machinery and other fields. Operating temperature
-45 ° C ~ +260 ° C, short-term up to 300 ° C, high temperature 200 ° C burst pressure > 3MPA, normal temperature burst pressure > 10MPA, after 200 ° C, 720 hours high temperature air aging to maintain 3MPA does not leak, pulse life more than 200,000 Times.
Product Usage:
Pneumatic brake hose is mainly used in the pneumatic brake system of various trucks, buses and heavy vehicles to transmit pneumatic power
| 实验项目 Experimental project | 实验项目 Experimental project | 测试结果 Test Results |
| 气密性 | 经受3.5mpa空气压力试验120秒的软管组合件不出现泄漏 | 通过 |
| 耐臭氧性 | 在（50±5）x10-11浓度，40℃±2℃， 70±2h无龟裂或裂纹 | 通过 |
| 耐水抗拉强度 | 室温在蒸馏水中浸泡70h±h后测试抗拉 强度和浸泡前对比 | 无变化 |
| 接头耐腐蚀性 | 24h盐雾试验无红锈或腐蚀痕迹 | 通过 |
| 通过 | 200℃x168h后，在3mpa压力下进行气 密性测试不漏气 | 通过 |
| 耐低温性能 | -40±1℃x72h±2h后，室温检查内外表 面无裂纹 | 通过 |
